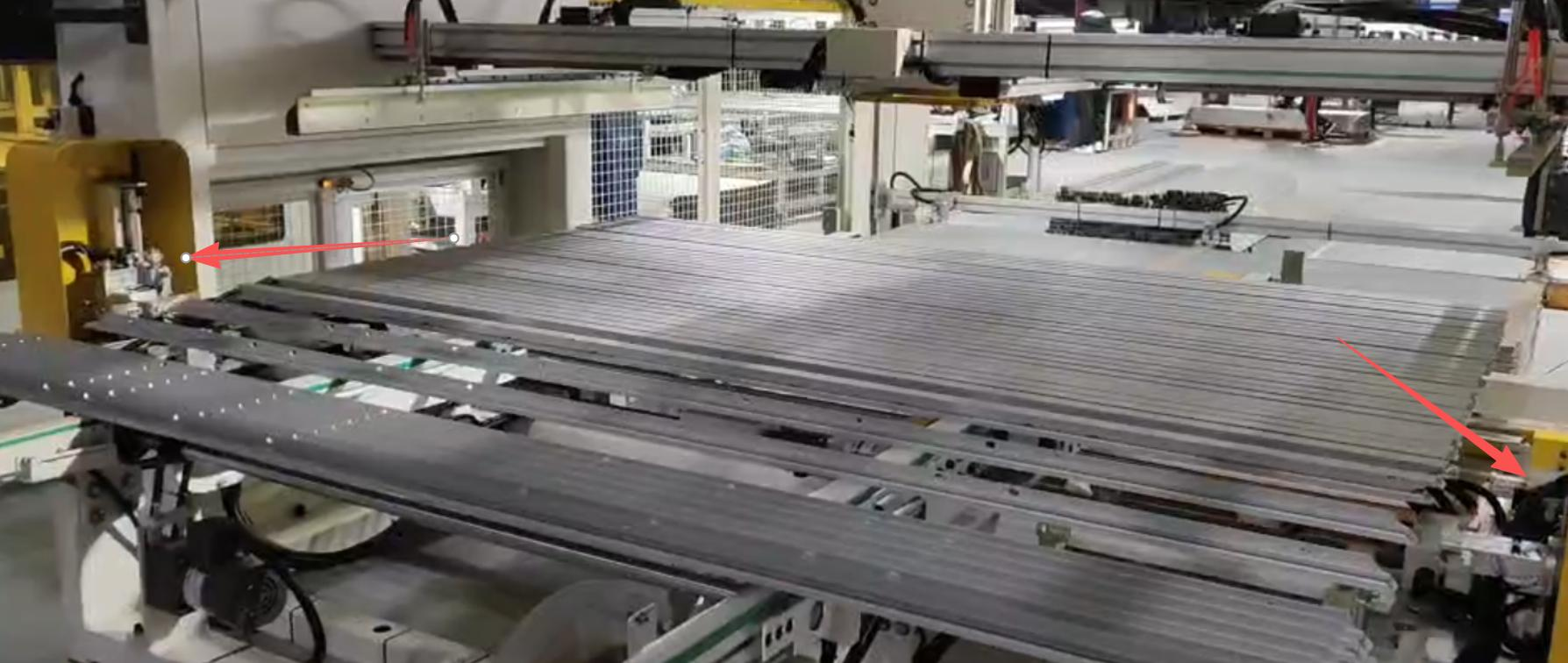

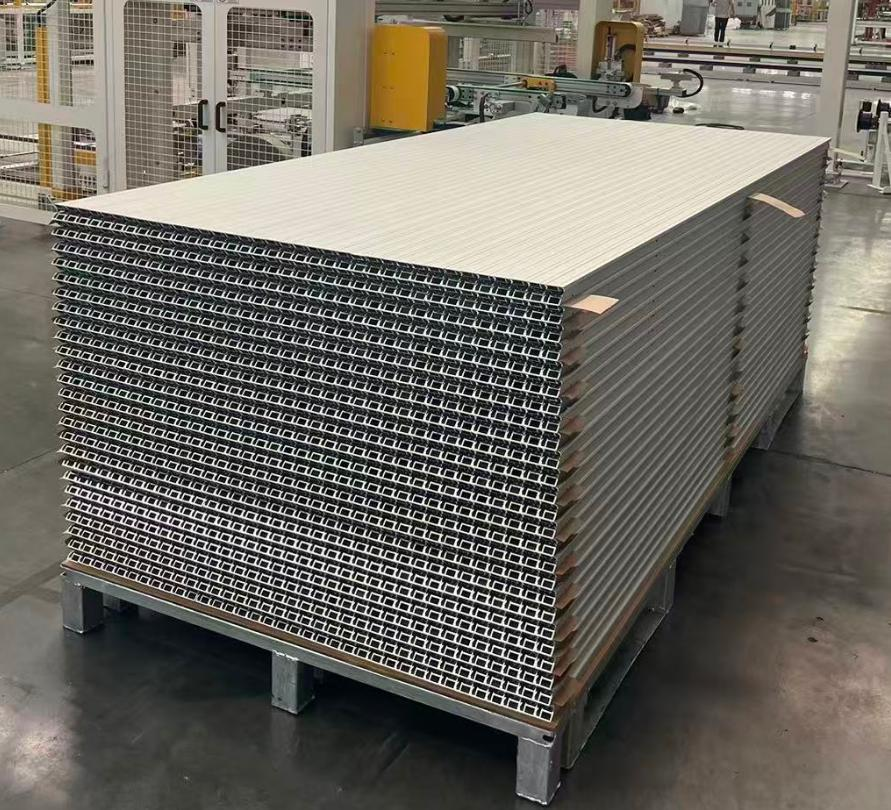

Queue the finished profiles at the entrance, where the "single profile lifting and rotating mechanism" grips and rotates the first profile by 180°. When the second profile is in place, the first profile is buckled down and locked together with the second profile, and then they flow into the queue together. Once the queue is full, the entire row is palletized; (1), Efficiency: ≤ 1.5s/piece; (2), Installed power: 8KW; Maximum operating power: 3KW; (3), Air pressure: 0.6 MPa; (4), Overall dimensions: L5600*W2950*H4000;

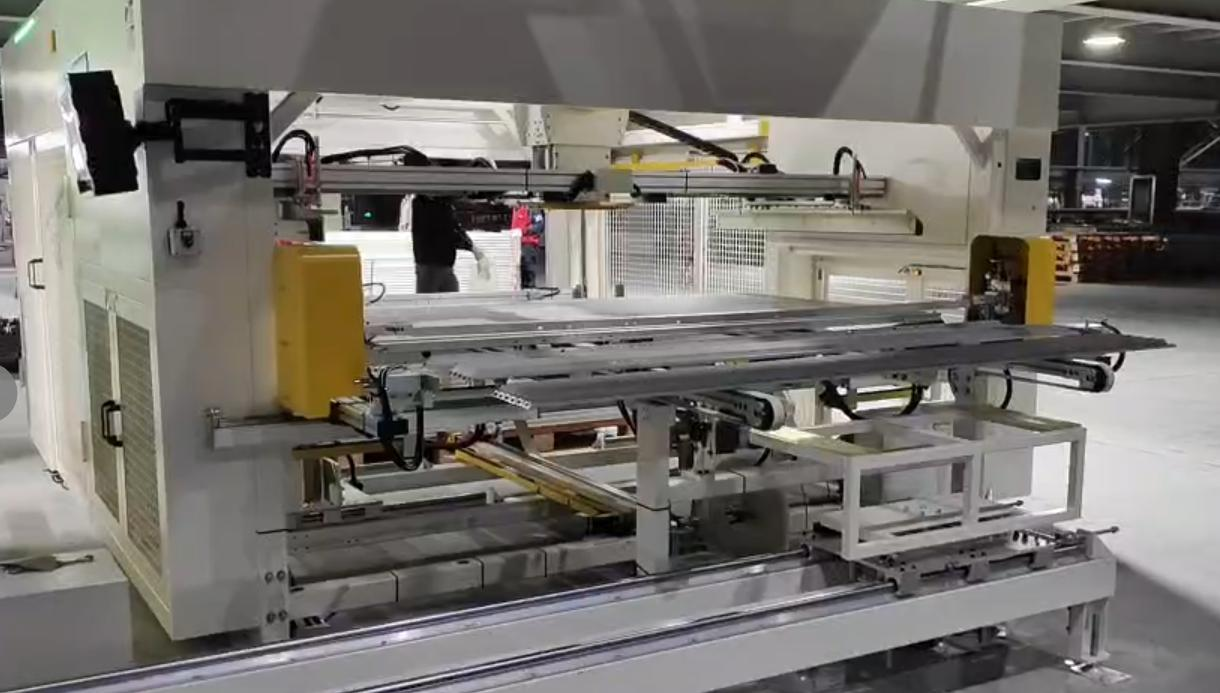

Long-edge palletizer (without pallet buffer)

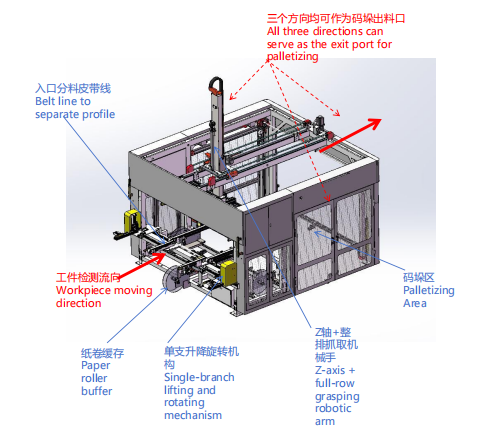

Single- branch lifting and rotating mechanis m
