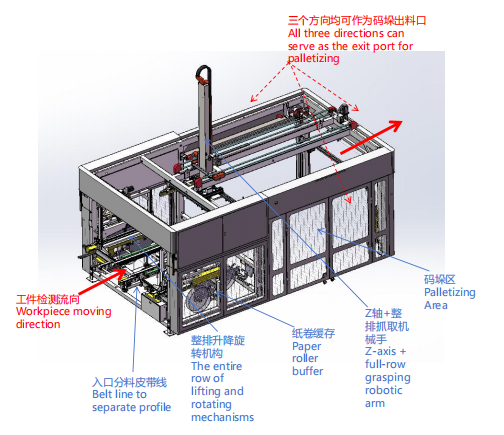

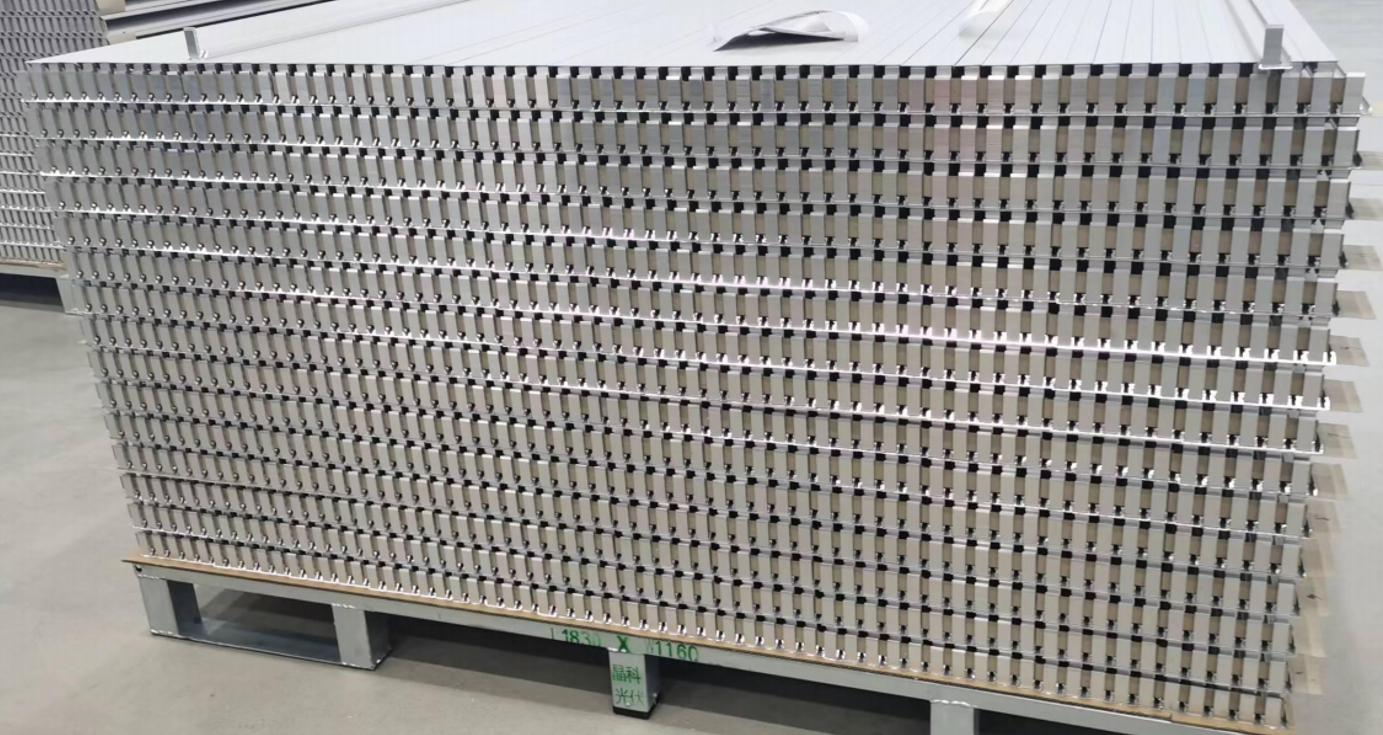

Queue the finished profiles, with that combination forming the first row. Once the first row is full, use the "lifting and rotating 180°" mechanism to rotate the profiles in the first row 180 degrees and fix them in place. After the second row is full, the lifting mechanism will lower the first row and buckle it together with the second row. During this process, insert the corner paper simultaneously; (1), Efficiency: ≤ 1.5s/piece; (2), Installed power: 8KW; Maximum operating power: 3KW; (3), Air pressure: 0.6 MPa; (4), Overall dimensions: L5600*W2950*H4000;

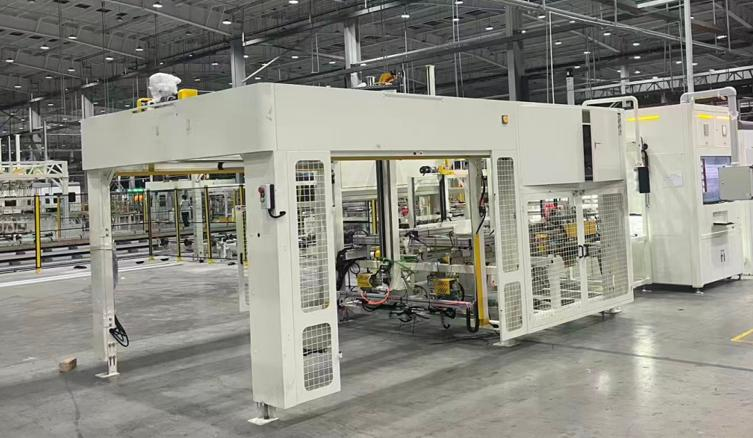

Short-side palletizer

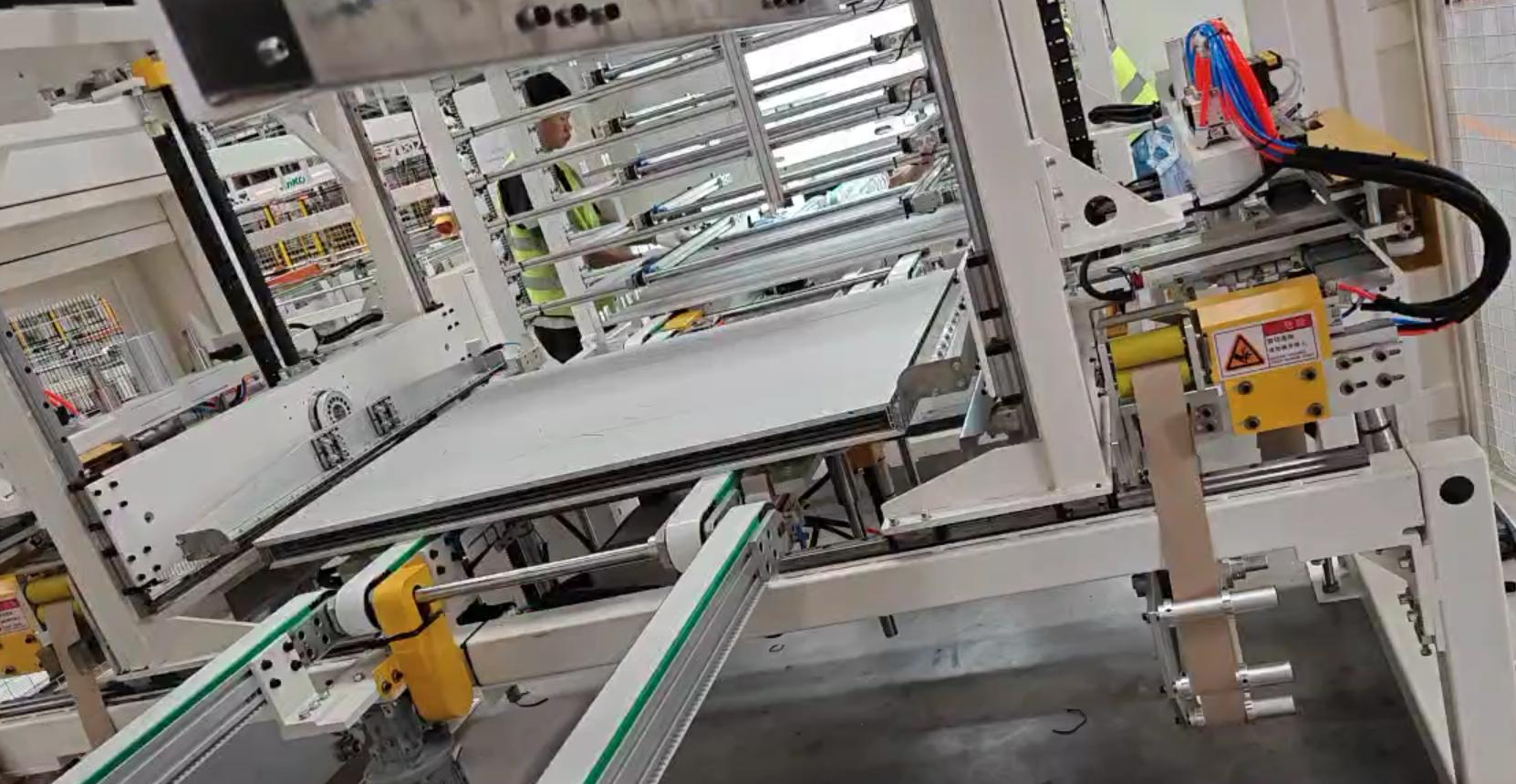

The entire row of lifting and rotating mechanis ms
