It is capable of accurately detecting common issues such as "oil stains, scratches, abrasions, damage to glass edges, bubbles, black lines, and corner impacts";

1. Full inspection coverage: 100%; covering all seven surfaces and both end faces of 5 parallel materials, namely A/B/B1/C/C1/D/E, with no blind spots. 2. Detection rate of appearance defects: > 99.5%, covering defect types including but not limited to: Scratches (HS), strokes (BH), bubbles (QP), black lines (HX), oil stains (YW), strain (LS), foreign objects in the slot (KCYW), unique scratches on the pattern (GS), missing substrate (LJC), imprints (YY), bumps (KP), etc. 3. Dimensional measurement accuracy: dynamic online length measurement: ±0.15 mm; hole position/hole diameter measurement: ±0.05 mm. 4. False Alarm Rate: < 0.5%. 5. Detection cycle: ≤ 9 seconds per group of 5 pieces, fully matching the maximum cycle of the front-end extrusion production line, without becoming a bottleneck.

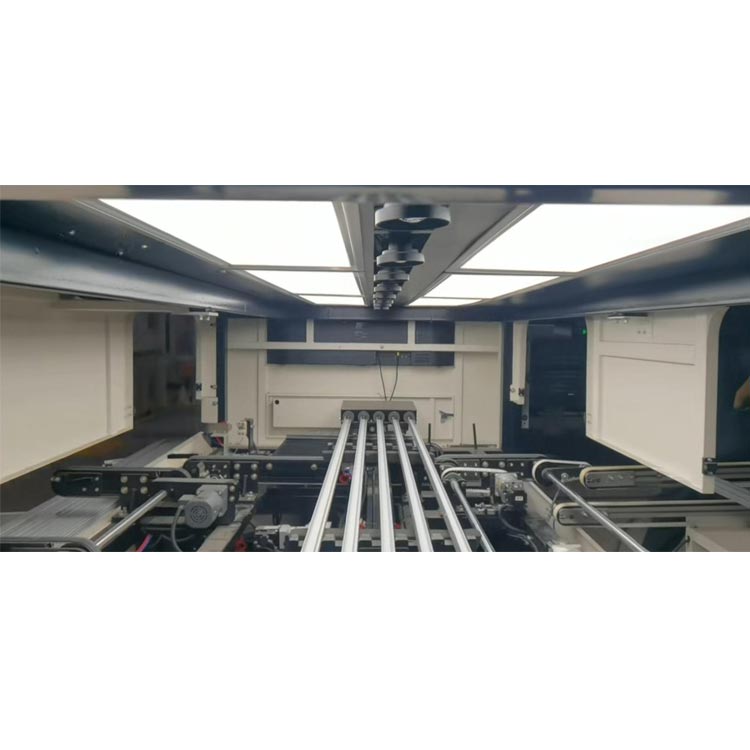

Interior view of profile inspection

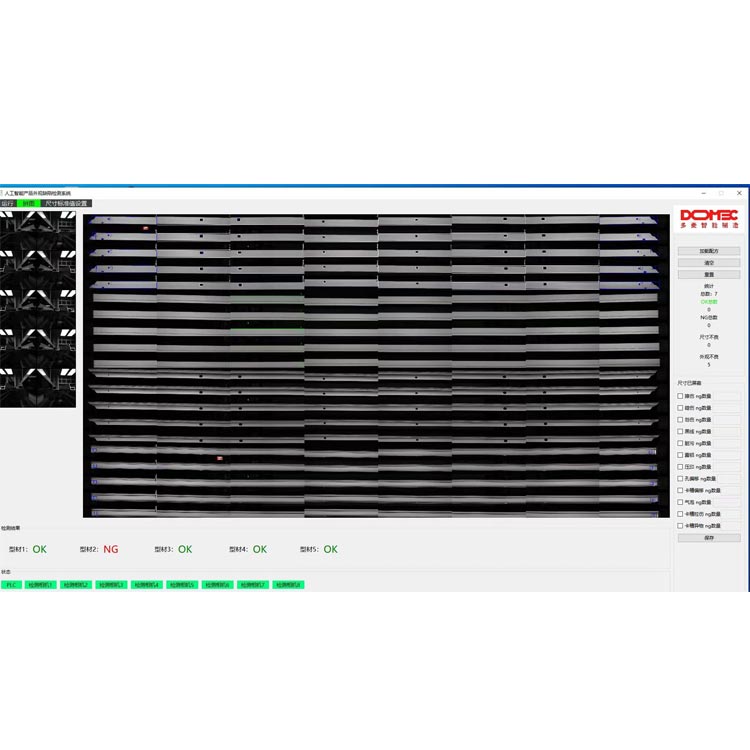

Clear and complete display interface

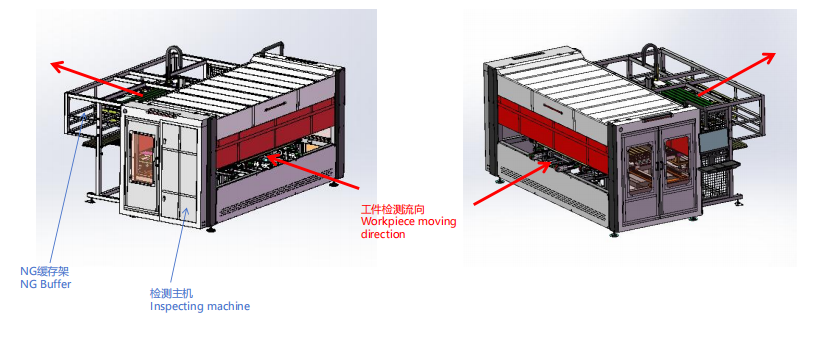

Visual inspection machine for short side of finished frame products:

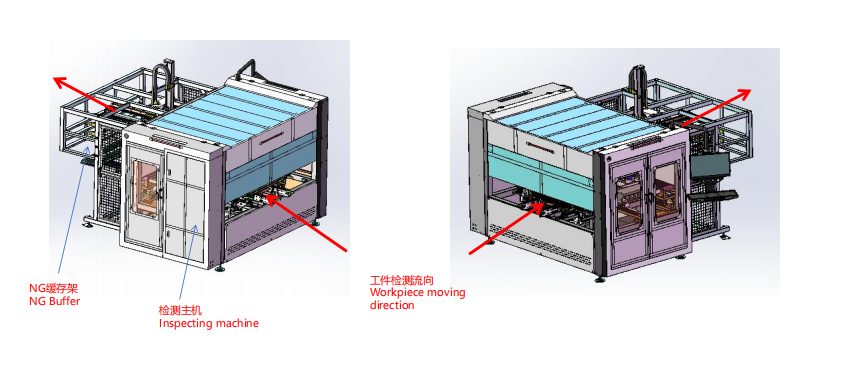

Visual inspection machine for long side of finished frame products:
